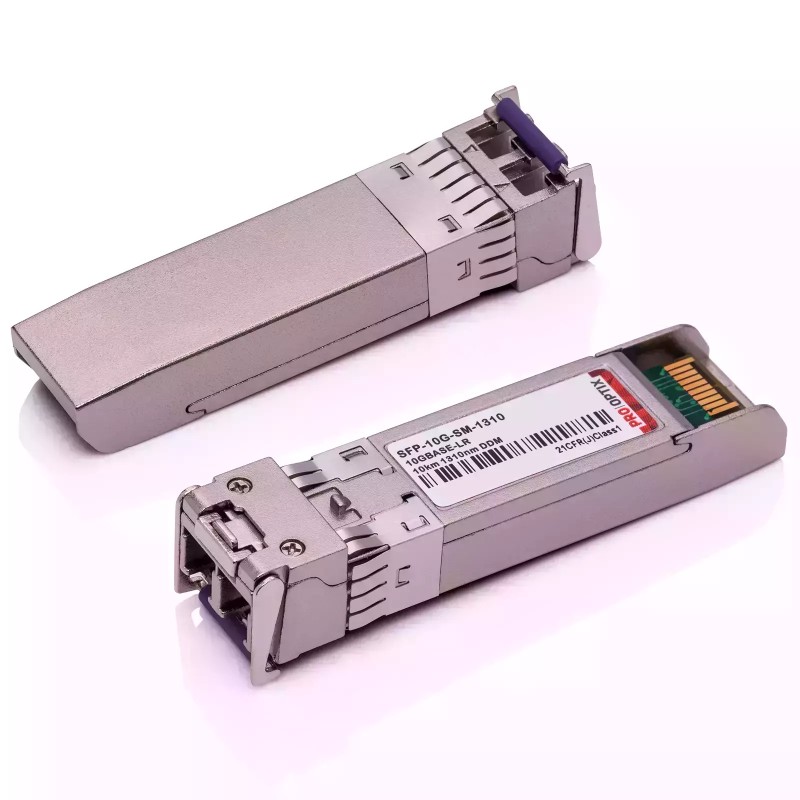

10G SFP+ LR
search
  • 10G SFP+ LR

10G SFP+ LR

SKU: 455886-B21-O
Register to see pricing
10 km, 1310 nm, LC Duplex, Singlemode, DDM
Connector LC Duplex Data Rate 10 Gbit/s Reach 10 km Form Factor SFP+
Coding: HP (BladeSystem)
Warranty: 3 Years
455886-B21-O
Connector LC Duplex Data Rate 10 Gbit/s
Reach 10 km Form Factor SFP+
Type Single Lambda DDM Yes
Media Singlemode Operating Temperature 0°C - 70°C
Wavelength TX (typical) 1310 nm

Särskilda referenser

Tillverkarens art.nr.
SFP-10G-LR

All transceivers are supplied with extensive warranties, tested and guaranteed compatible. Warranted transceivers are selected with due-diligence to ensure portfolio compatibility and customer satisfaction. All suppliers operate under ISO quality control standards.

Next-day, fully tracked delivery from extensive European stock. Technical support is available on demand and the Pro Optix team of experts can provide any product support you may need.

ISO 9001, ISO 14001, RoHS, CE, FCC and WEEE certifications

Related products

SFP+

SFP+ (Enhanced Small Form-factor Pluggable) is an enhanced version of SFP but with a higher data rate and was originally introduced in 2006. Data transmission is available at 8 Gbps, 10 Gbps and 16 Gbps. SFP+ has become a dominant industry format and is supported by many network vendors, with the latest update to the standard in 2013. Distances covered range from 30m to 120km and SFP+ transceivers are available several different connector types such as LC Duplex, LC Simplex and RJ45.

DFB (Distributed Feedback Laser)

DFB, which stands for Distributed Feedback Laser, passes only specific wavelengths through a grating. Optical transceivers transmitting at distances below 40km use DFB lasers at 1310nm and 1550nm wavelengths. Is also known as DML (Directly Modulated Laser).

NRZ (Non-Return-to-Zero)

Non-Return-to-Zero (NRZ) is the traditional modulation for optical communication. It uses on-off keying (two voltage levels to represent binary ‘0’ and’1’). It is used for short distances and limited to 28Gbps data rate but using WDM can be combined to achieve a data rate of 100Gbps.

LR (Long Reach)

LR (Long Range) transceivers are optimized for longer distances from 10 km to 40km over single-mode fiber and are used for inter-rack connections, in connecting between buildings and across metropolitan areas. Available with LC connectors.
